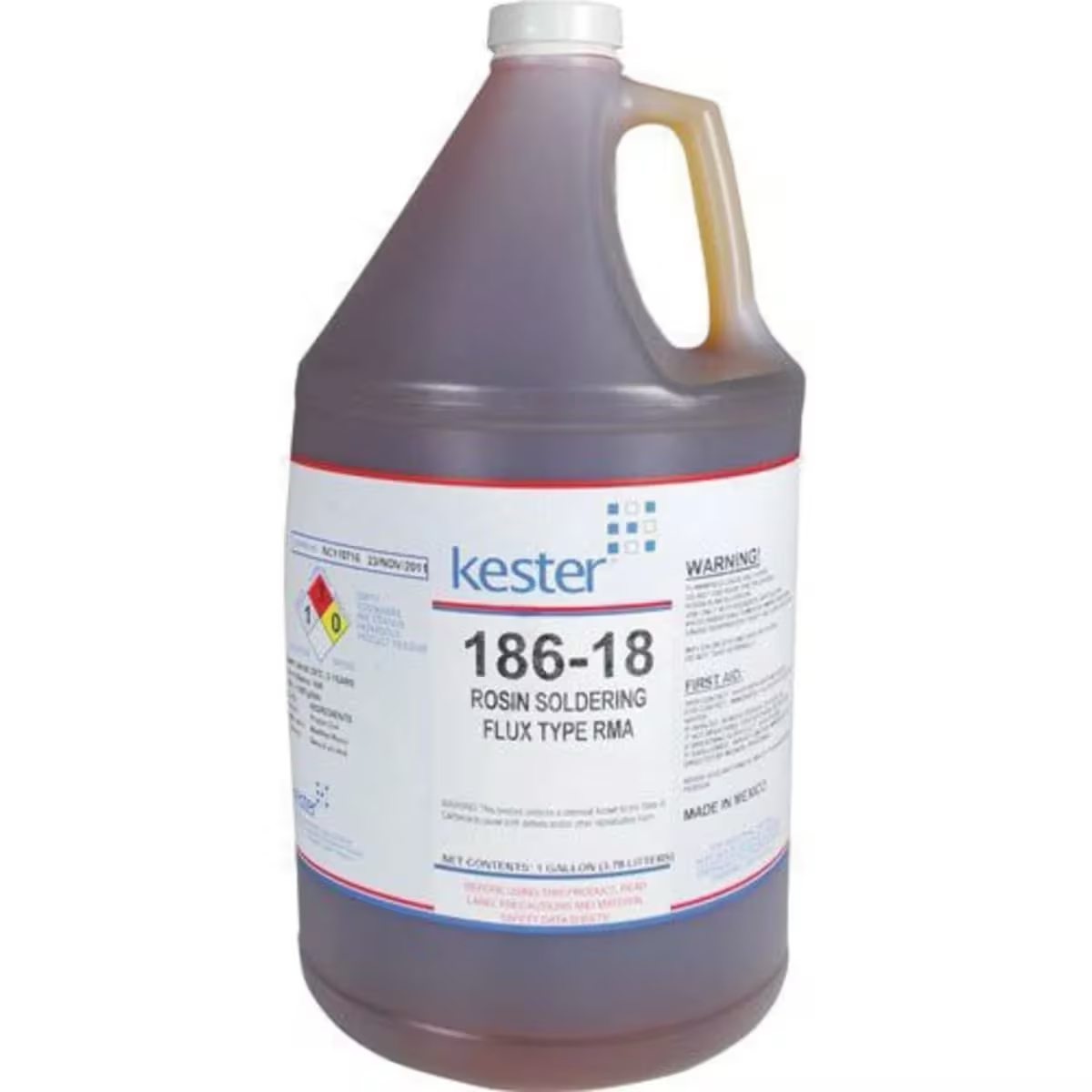

Solder Flux, Type RMA, 186-18
Specifications
The Kester 186-18, under MIL-F-14256, was QPL approved as type RMA. Although the fluxing ability approaches that of type RA flux, the flux residue after soldering is non-corrosive and non-conductive. 186-18 rosin flux has been developed for use in critical applications where difficult assemblies are to be soldered, but process requirements stipulate use of type RMA flux. This flux possess high thermal stability for soldering multi-layer assemblies which require a high preheat temperature. The flux residue is also moisture and fungus resistant. - Exposure to high preheat temperatures does not degrade solubility of the residue in normal cleaning solvents. There is no surface insulation resistance degradation caused by the flux residue. The use of a minimum of ionic activating agents and the inactive nature of the residue permits leaving the residue on circuit board assemblies for many applications.
Features
- High thermal stability
- Improves soldering performance
- Eliminates the need and expense of cleaning
- Temperature rating of 90 to 105 °C
- Vapor pressure of 43 hPa at 20 °C
Product Description
Solder Flux, Type RMA, 186-18
Specifications
The Kester 186-18, under MIL-F-14256, was QPL approved as type RMA. Although the fluxing ability approaches that of type RA flux, the flux residue after soldering is non-corrosive and non-conductive. 186-18 rosin flux has been developed for use in critical applications where difficult assemblies are to be soldered, but process requirements stipulate use of type RMA flux. This flux possess high thermal stability for soldering multi-layer assemblies which require a high preheat temperature. The flux residue is also moisture and fungus resistant. - Exposure to high preheat temperatures does not degrade solubility of the residue in normal cleaning solvents. There is no surface insulation resistance degradation caused by the flux residue. The use of a minimum of ionic activating agents and the inactive nature of the residue permits leaving the residue on circuit board assemblies for many applications.
Features
- High thermal stability
- Improves soldering performance
- Eliminates the need and expense of cleaning
- Temperature rating of 90 to 105 °C
- Vapor pressure of 43 hPa at 20 °C
