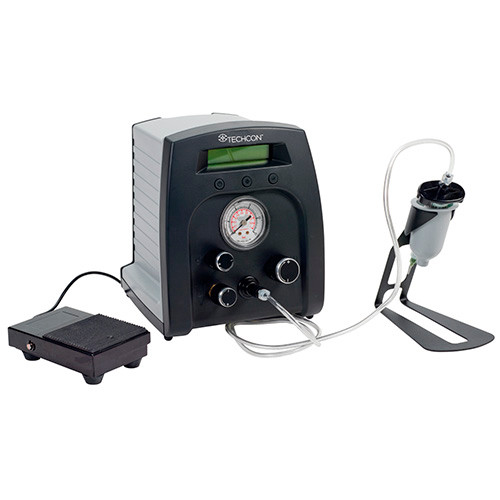

Digital Fluid Dispenser/Controller, Basic Series
OK International
Specifications
The TS250 Series Digital Fluid Dispenser/Controller dispenses low, medium and high-viscosity fluids accurately and consistently. The TS250 Series is immediately usable anywhere in the world with its accompanying tools, accessories and universal power supply.
The modern-style enclosure has a small footprint and conserves workspace through a design that allows multiple units to be stacked and fastened together. A highly responsive air pressure and vacuum management system and a digital timing circuit provide consistent and repeatable fluid dispensing and material waste control. User-friendly firmware provides quick and easy setup.
Two operating pressures are available: TS250 (1 -100 psi/0.07 - 6.9 bar for general applications), and TS255 (0 - 15 psi/0.07 - 1.0 bar for specific low-viscosity applications).
The modern-style enclosure has a small footprint and conserves workspace through a design that allows multiple units to be stacked and fastened together. A highly responsive air pressure and vacuum management system and a digital timing circuit provide consistent and repeatable fluid dispensing and material waste control. User-friendly firmware provides quick and easy setup.
Two operating pressures are available: TS250 (1 -100 psi/0.07 - 6.9 bar for general applications), and TS255 (0 - 15 psi/0.07 - 1.0 bar for specific low-viscosity applications).
| Cycle Rate | 600 cycles/minute |
| Timing Range | 0.020 - 60.000 seconds |
| Timing Repeat Tolerance | +/- 0.001% |
| Input Pressure | 100 psi (6.9 bar) maximum |
| Operating Pressure (TS250) | 1 - 100 psi (0.07 - 6.9 bar) |
| Dispense Modes | Timed and Purge |
| Meets or Exceeds | CE, TUV-GS and NRTL |
- Universal power supply with snap-on plug for worldwide use
- User Friendly firmware provides easy setup task
- Digital timing from 0.020-60.000 seconds
- +/- 0.001% Timing repeat tolerances
- Adjustable vacuum-driven ''suck back'' to control material ''tailing'' and waste
- Stable to conserve work space when multiple TS250 units are used together
- Large, clearly marked air pressure and vacuum control knobs
- Precise, finely scaled air pressure gauges
- High visibility, 16 x 2 LCD display panel with back lighting
- Accessories included: Universal power adapter, foot switch, syringe barrel stand, 10cc receiver head, air hose with fittings, cable holder and sample dispensing tips.
Product Description
Digital Fluid Dispenser/Controller, Basic Series
Specifications
The TS250 Series Digital Fluid Dispenser/Controller dispenses low, medium and high-viscosity fluids accurately and consistently. The TS250 Series is immediately usable anywhere in the world with its accompanying tools, accessories and universal power supply.
The modern-style enclosure has a small footprint and conserves workspace through a design that allows multiple units to be stacked and fastened together. A highly responsive air pressure and vacuum management system and a digital timing circuit provide consistent and repeatable fluid dispensing and material waste control. User-friendly firmware provides quick and easy setup.
Two operating pressures are available: TS250 (1 -100 psi/0.07 - 6.9 bar for general applications), and TS255 (0 - 15 psi/0.07 - 1.0 bar for specific low-viscosity applications).
The modern-style enclosure has a small footprint and conserves workspace through a design that allows multiple units to be stacked and fastened together. A highly responsive air pressure and vacuum management system and a digital timing circuit provide consistent and repeatable fluid dispensing and material waste control. User-friendly firmware provides quick and easy setup.
Two operating pressures are available: TS250 (1 -100 psi/0.07 - 6.9 bar for general applications), and TS255 (0 - 15 psi/0.07 - 1.0 bar for specific low-viscosity applications).
| Cycle Rate | 600 cycles/minute |
| Timing Range | 0.020 - 60.000 seconds |
| Timing Repeat Tolerance | +/- 0.001% |
| Input Pressure | 100 psi (6.9 bar) maximum |
| Operating Pressure (TS250) | 1 - 100 psi (0.07 - 6.9 bar) |
| Dispense Modes | Timed and Purge |
| Meets or Exceeds | CE, TUV-GS and NRTL |
- Universal power supply with snap-on plug for worldwide use
- User Friendly firmware provides easy setup task
- Digital timing from 0.020-60.000 seconds
- +/- 0.001% Timing repeat tolerances
- Adjustable vacuum-driven ''suck back'' to control material ''tailing'' and waste
- Stable to conserve work space when multiple TS250 units are used together
- Large, clearly marked air pressure and vacuum control knobs
- Precise, finely scaled air pressure gauges
- High visibility, 16 x 2 LCD display panel with back lighting
- Accessories included: Universal power adapter, foot switch, syringe barrel stand, 10cc receiver head, air hose with fittings, cable holder and sample dispensing tips.
