Tek-Me Cutters - Medium Size Head, Flush. OAL: 138mm - 5.43". ESD Safe
Ideal-Tek
Tek-Me Cutters - Medium Size Head, Flush. OAL: 138mm - 5.43". ESD Safe
The PC25E is a flush cutter. Its medium size (2,5mm thick) allow the cutting of bigger electronic components than in the micro line. The cutters are equipped with an ESD and ergonomic handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharges.
Product type: TEK-ME Carbon Steel Hand tools
Made in: Italy
Description: The PC25E is a flush cutter. Its medium size (2,5mm thick) allow the cutting of bigger
electronic components than in the micro line. The cutters are equipped with an ESD and
ergonomic handle which allows an excellent grip, suitable to environments and to components
susceptible to electrostatic discharges.
Head description: Medium, Shear
Cutting edges: Full-Flush
Cutting capacity: soft wire 1.3 mm (16 AWG)
Body material: Carbon Steel (C70)

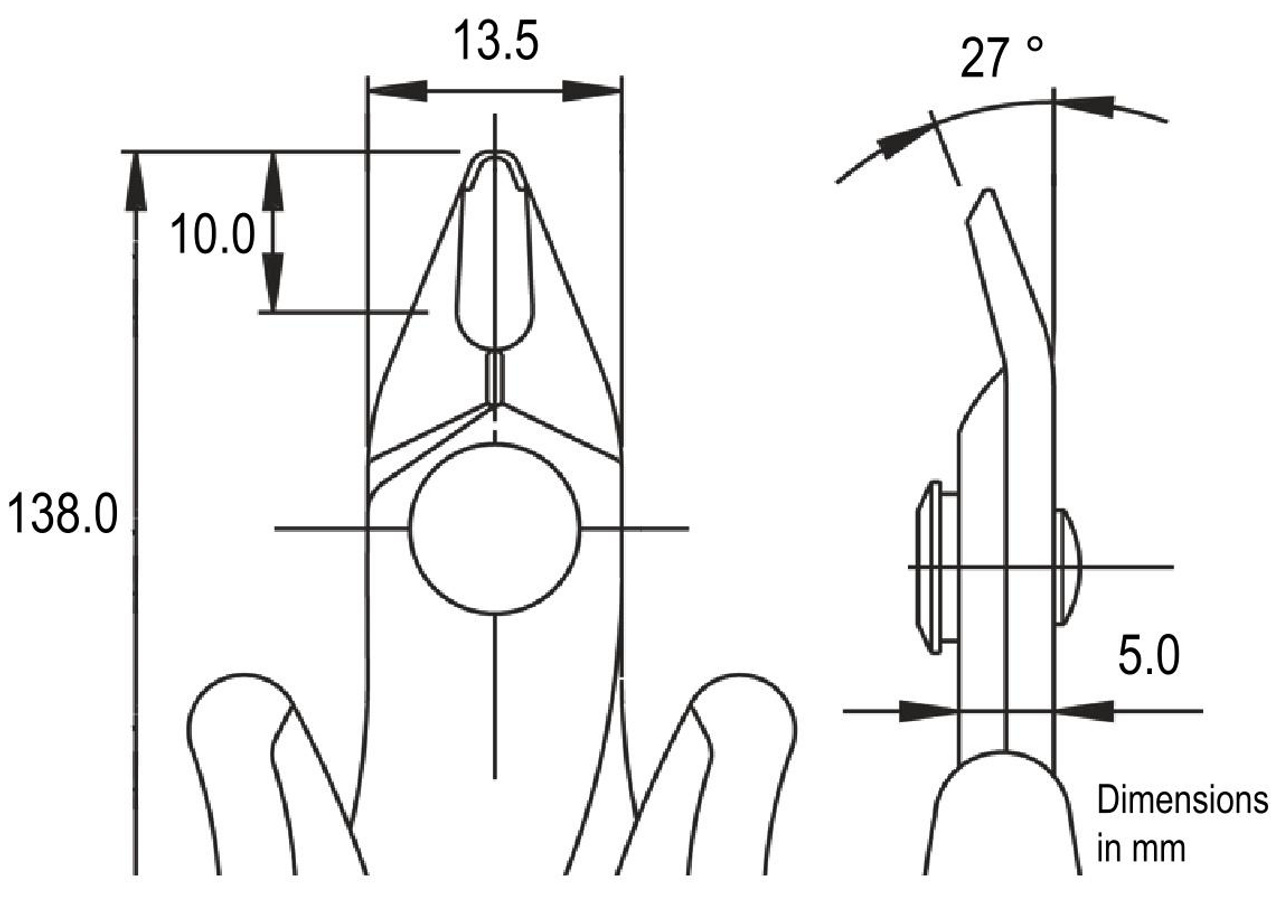

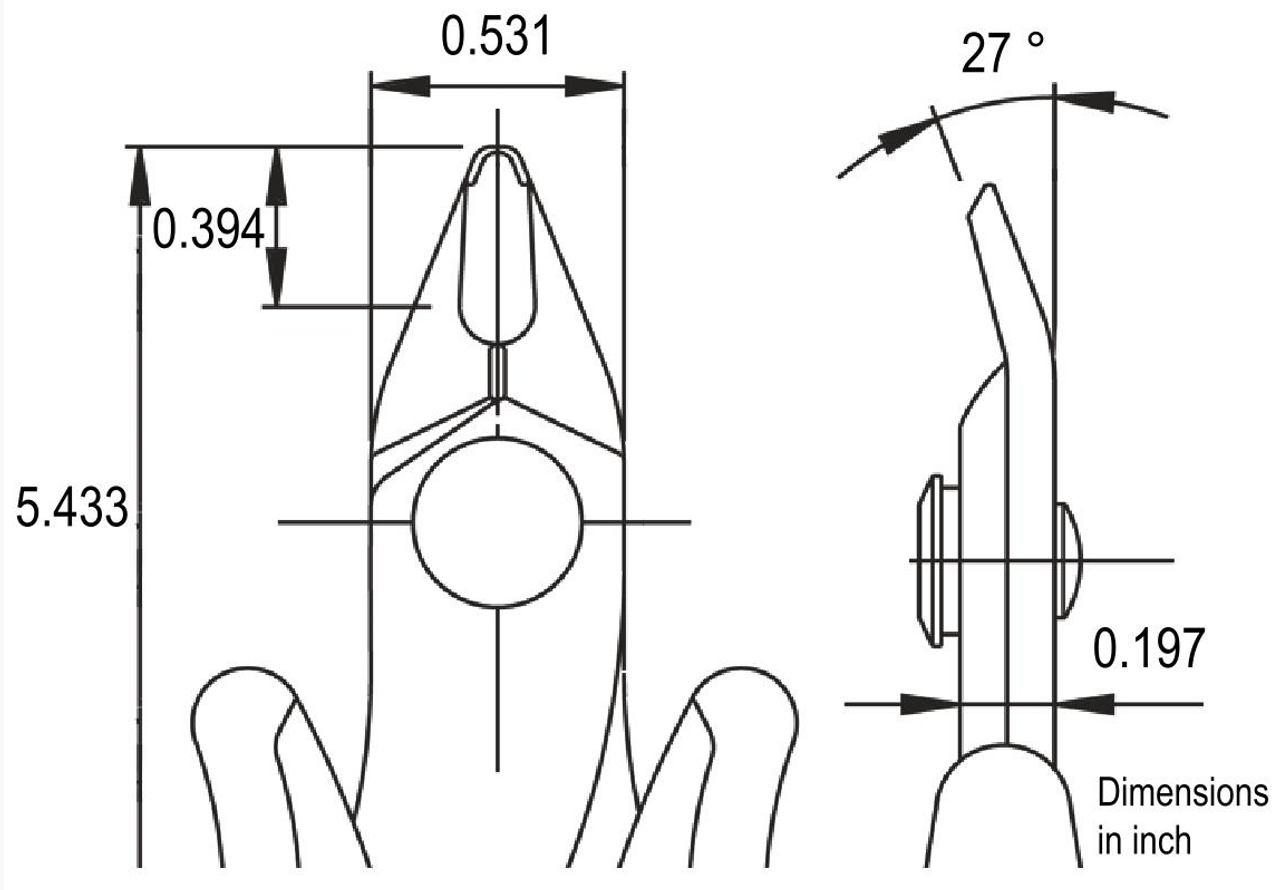

Dimensions:
OAL (A) 138.0 mm – 5.433 inch
Width Height 85.0 mm – 3.346 inch
13.0 mm – 0.512 inch
Head Dimensions:
Width (C) 13.5 mm – 0.531 inch
Thickness (D) 5.0 mm – 0.197 inch
B 10.0 mm – 0.394 inch
F 2.0 mm – 0.079 inch
