Tek-Me Cutters - Medium Size and Oblique Head, Flush. OAL: 135mm - 5.31". ESD Safe
Ideal-Tek
Tek-Me Cutters - Medium Size and Oblique Head, Flush. OAL: 135mm - 5.31". ESD Safe

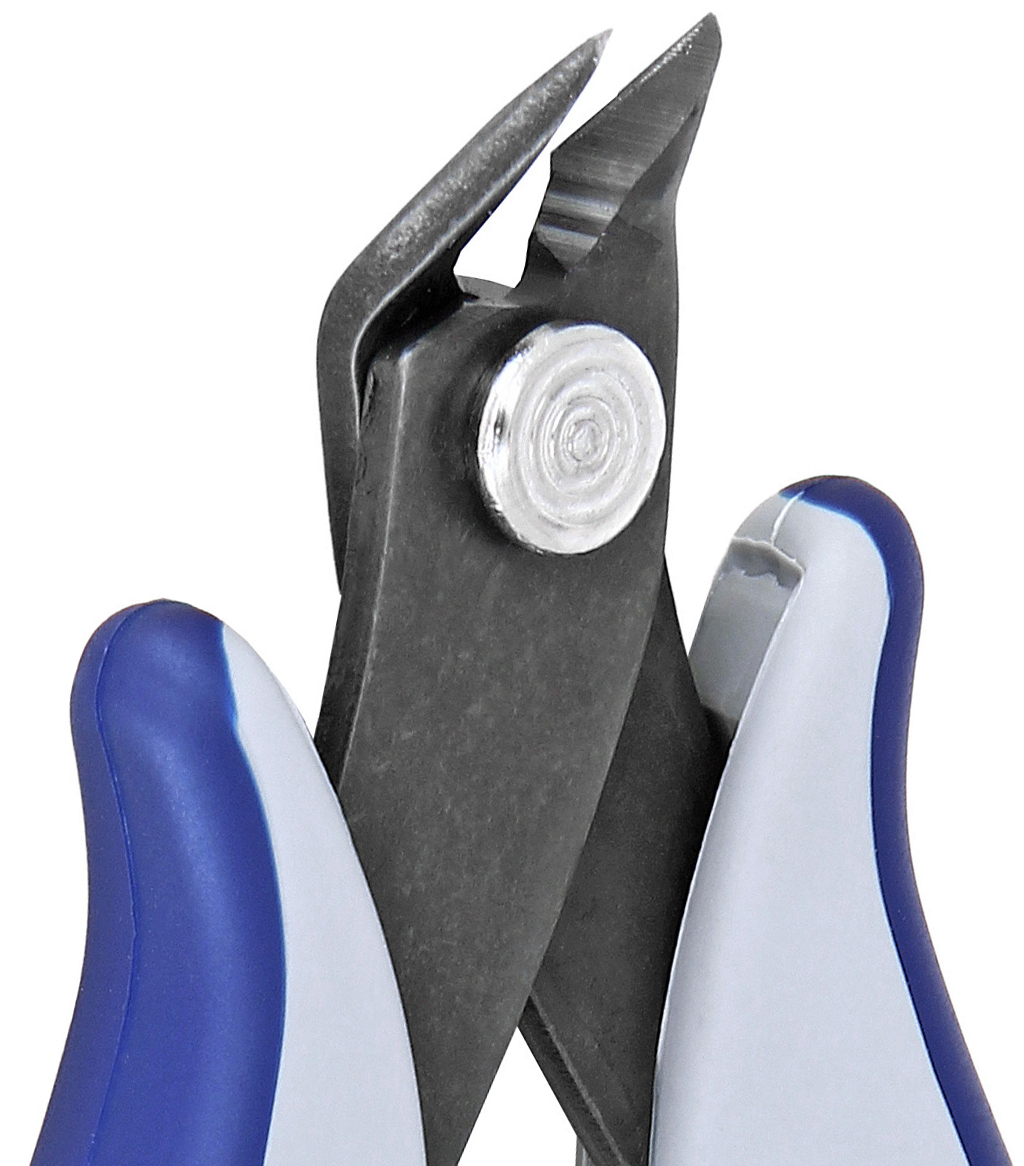

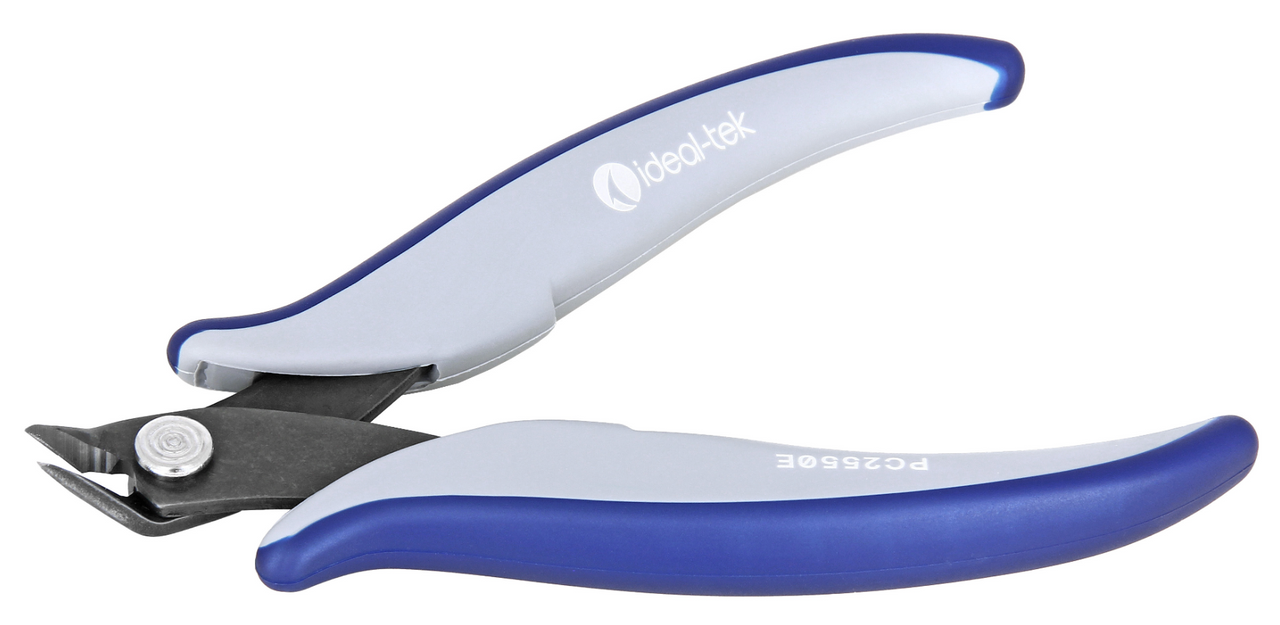

The PC2550E is an angled flush cutter. Its medium size (2,5mm thick) allow the cutting of bigger electronic components than in the micro line. In addition, its 50º angled head provides excellent visibility when used in either vertical or horizontal position. The cutters are equipped with an ESD and ergonomic handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharges.
Product type: TEK-ME Carbon Steel Hand tools
Made in: Italy
Description: The PC2550E is an angled flush cutter. Its medium size (2,5mm thick) allow the cutting of bigger electronic components than in the micro line. In addition, its 50° angled head provides excellent visibility when used in either vertical or horizontal position. The cutters are equipped with an ESD and ergonomic handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharges.
Head description: Angled Medium, Shear
Cutting edges: Full-Flush
Cutting capacity: soft wire 1.3 mm (16 AWG)
Body material: Carbon Steel (C70)
Body finishing: Phosphated

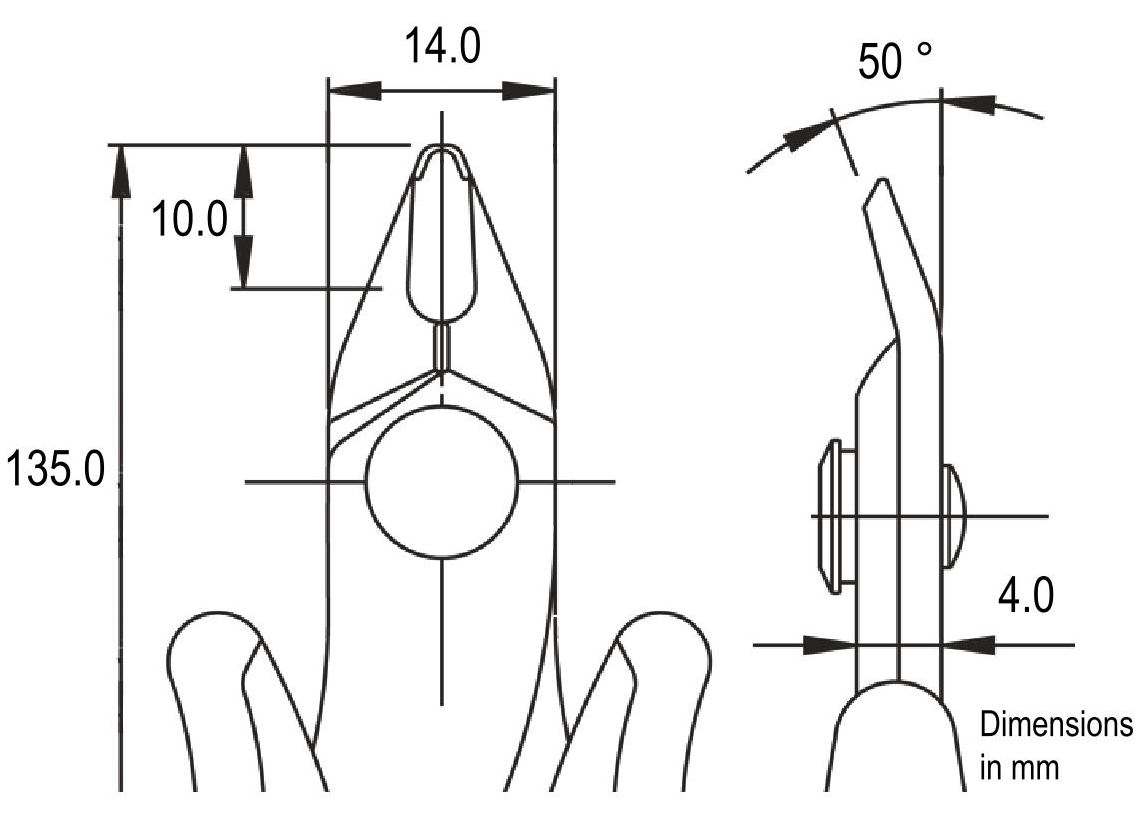

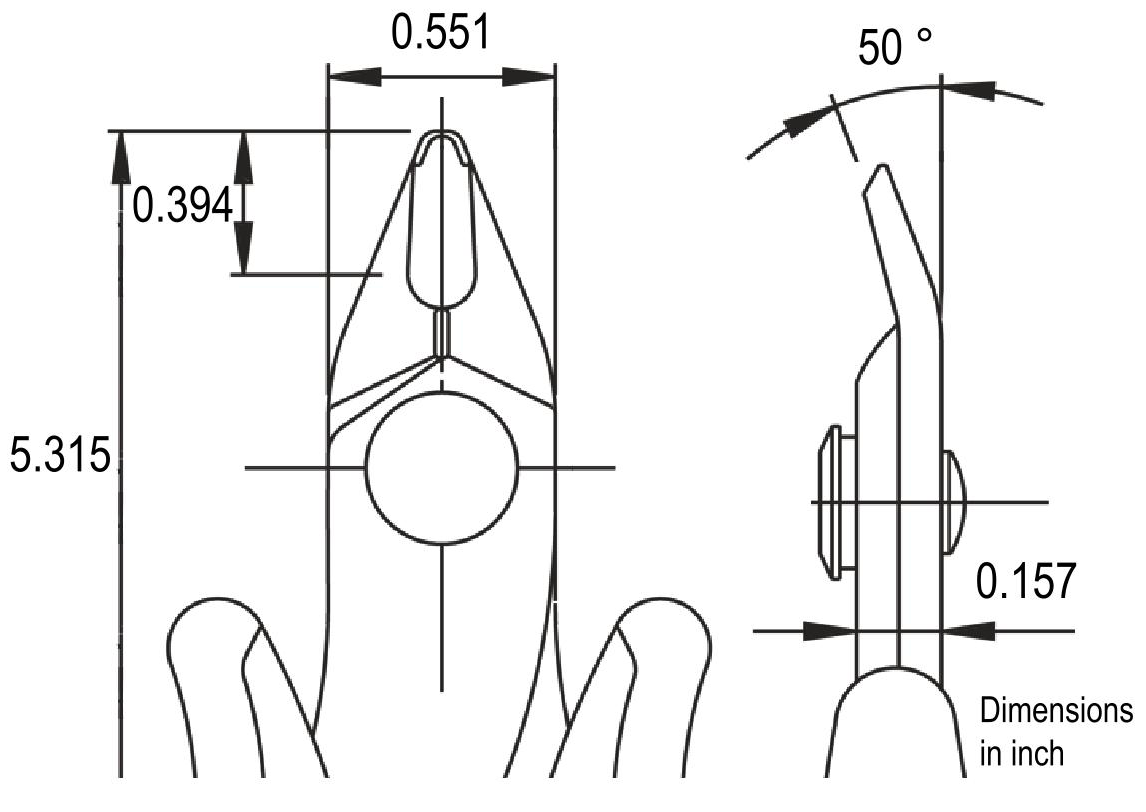

Dimensions:
OAL (A) 135.0 mm – 5.315 inch
Width Height 80.0 mm – 3.150 inch
15.0 mm – 0.591 inch
Head Dimensions:
Width (C) 14.0 mm – 0.551 inch
Thickness (D) 4.0 mm – 0.157 inch
B 10.0 mm – 0.394 inch
F 0.8 mm – 0.031 inch
Product Description
Tek-Me Cutters - Medium Size and Oblique Head, Flush. OAL: 135mm - 5.31". ESD Safe
Tek-Me Cutters - Medium Size and Oblique Head, Flush. OAL: 135mm - 5.31". ESD Safe
The PC2550E is an angled flush cutter. Its medium size (2,5mm thick) allow the cutting of bigger electronic components than in the micro line. In addition, its 50º angled head provides excellent visibility when used in either vertical or horizontal position. The cutters are equipped with an ESD and ergonomic handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharges.
Product type: TEK-ME Carbon Steel Hand tools
Made in: Italy
Description: The PC2550E is an angled flush cutter. Its medium size (2,5mm thick) allow the cutting of bigger electronic components than in the micro line. In addition, its 50° angled head provides excellent visibility when used in either vertical or horizontal position. The cutters are equipped with an ESD and ergonomic handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharges.
Head description: Angled Medium, Shear
Cutting edges: Full-Flush
Cutting capacity: soft wire 1.3 mm (16 AWG)
Body material: Carbon Steel (C70)
Body finishing: Phosphated
Dimensions:
OAL (A) 135.0 mm – 5.315 inch
Width Height 80.0 mm – 3.150 inch
15.0 mm – 0.591 inch
Head Dimensions:
Width (C) 14.0 mm – 0.551 inch
Thickness (D) 4.0 mm – 0.157 inch
B 10.0 mm – 0.394 inch
F 0.8 mm – 0.031 inch
