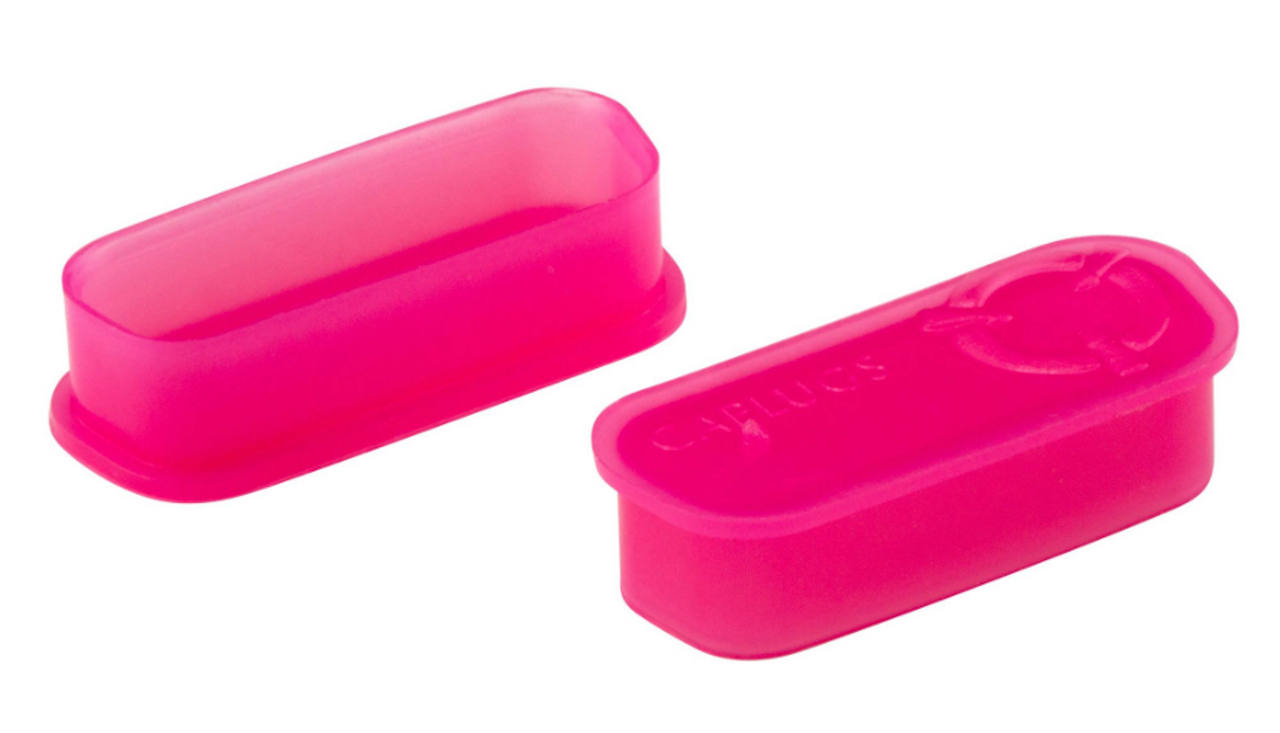

Protective Covers for D-Subminiature Connectors, 500/pack
Caplugs
DCC Series - Sold 500 each per pack
DCC Series caps are designed to provide electrostatic discharge protection of rectangular D-subminiature input/output type connectors. Molded with an integral flange to allow for easy application and removal, parts in this series are available in either a black conductive polyethylene copolymer or pink static dissipative ethylene vinyl acetate.
This product has been fabricated from a conductive material that:
- Surface resistivity of less than 1 x 105 ohms/sq in accordance with ASTM test method D-257-78
- Meet the static decay requirements of MIL-PRF-81705E, Type II and Federal Test Method Standard No. 101, Method 4046
Material: Static dissipative ethylene vinyl acetate (EVA) or conductive polyethylene copolymer
Standard Colors: Pink, Black
| ASP# |
Item #
|
Contact Type | Material | Standard No. of Contacts |
| E480-101-1 | DCC-01C | Socket | Conductive | 9 |
| E480-101-2 | DCC-02C | Socket | Conductive | 15 |
| E480-101-3 | DCC-03C | Socket | Conductive | 25 |
| E480-101-4 | DCC-04C | Socket | Conductive | 37 |
| E480-101-5 | DCC-05C | Socket | Conductive | 50 |
| E480-101-8 | DCC-08C | Socket | Conductive | 104 |
| E480-101-11 | DCC-11C | Pin | Conductive | 9 |
| E480-101-12 | DCC-12C | Pin | Conductive | 15 |
| E480-101-13 | DCC-13C | Pin | Conductive | 25 |
| E480-101-14 | DCC-14C | Pin | Conductive | 37 |
| E480-101-15 | DCC-15C | Pin | Conductive | 50 |
| E480-101-18 | DCC-18C | Pin | Conductive | 104 |
| E480-101-1P | DCC-01SD | Socket | Static Dissipative | 9 |
| E480-101-2P | DCC-02SD | Socket | Static Dissipative | 15 |
| E480-101-3P | DCC-03SD | Socket | Static Dissipative | 25 |
| E480-101-4P | DCC-04SD | Socket | Static Dissipative | 37 |
| E480-101-5P | DCC-05SD | Socket | Static Dissipative | 50 |
| E480-101-8P | DCC-08SD | Socket | Static Dissipative | 104 |
| E480-101-11P | DCC-11SD | Pin | Static Dissipative | 9 |
| E480-101-12P | DCC-12SD | Pin | Static Dissipative | 15 |
| E480-101-13P | DCC-13SD | Pin | Static Dissipative | 25 |
| E480-101-14P | DCC-14SD | Pin | Static Dissipative | 37 |
| E480-101-15P | DCC-15SD | Pin | Static Dissipative | 50 |
| E480-101-18P | DCC-18SD | Pin | Static Dissipative | 104 |
