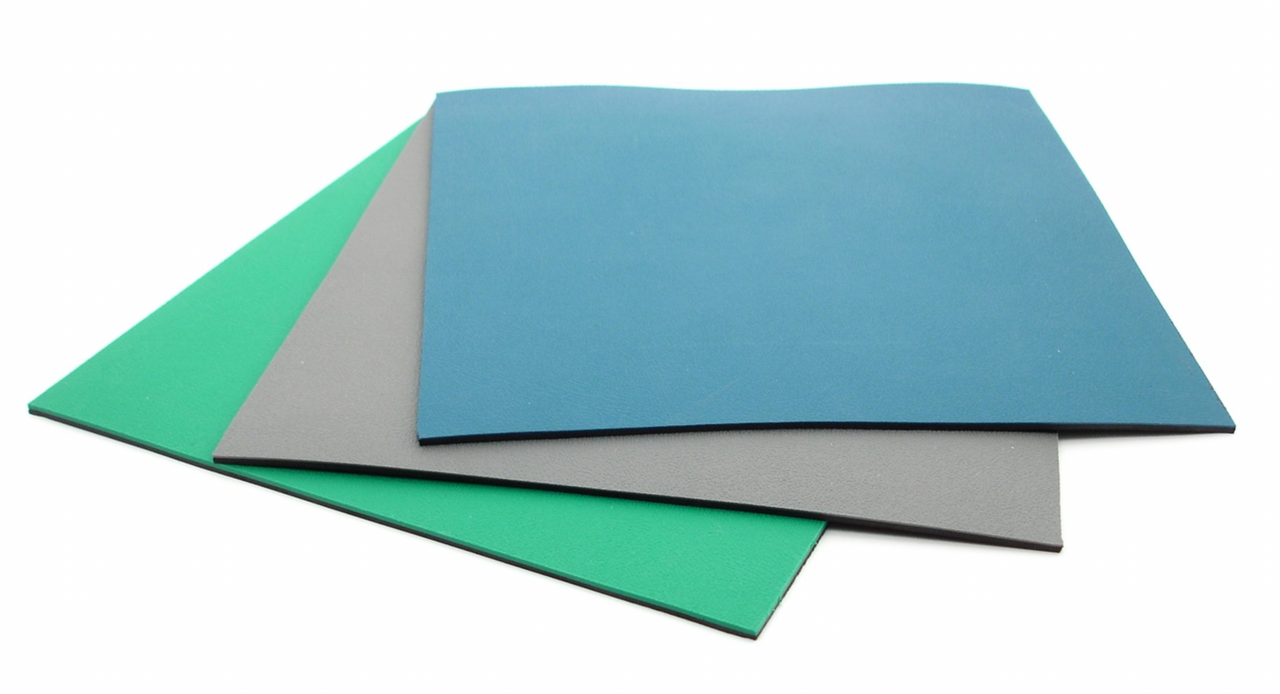

Mat, Dissipative Two Layer .06″ Rubber ESD Mat
Botron
Moisture-Lock Technology
Mat will not curl and is guaranteed to lay flat on the work surfaces. Moisture-Lock helps prevent the mat from drying out, cracking, shrinking and elongation.
2-Layer Construction
A top dissipative rubber layer maintains the perfect surface for ESDS providing a path to ground at or above 35M Ohms. This level of resistance helps control the discharge path when grounded operators are placing and maneuvering static sensitive devices at the workbench.
• Solder Resistant Surface
• UV resistant color stability and conductivity
• Reversible from Dissipative to Conductive
• Non-Skid Backing
• Chemical and Abrasion Resistant
• Lead-Free RoHS Compliant
Technical Information
Material: .06″ Thick Rubber Construction
Top Layer: Dissipative 108
Bottom Layer: Conductive 104
RTT
Resistance Top to Top: 5.8×107 - 6×108 Ohms
RTG
Resistance to Ground: 5.2×107 - 8×108 Ohms
Charge Decay Time: 5000 volts to 50v <0.01 Seconds
Standards: Meets or exceeds any one or combination of the following: ANSI/ESD S4.1, ANSI/ESD S7.1, ESD TR53
Colors: Blue, Green, Gray
Warning: Do not use alcohols/acetone to clean mats. This will dry out materials and destroy electrical properties.
