High Precision Ergo-tek Slim Tungsten Carbide Cutters - Small Tapered & Relieved Head, Tungsten Carbide Tips, Full-Flush - Open Springs. OAL: 120mm - 4.72", ESD Safe
Ideal-Tek
High Precision Ergo-tek Slim Tungsten Carbide Cutters - Small Tapered & Relieved Head, Tungsten Carbide Tips, Full-Flush - Open Springs. OAL: 120mm - 4.72", ESD Safe
Product type: Tungsten Carbide Cutters
Made in: Italy
Description: The 542TX is a high precision cutter belonging to the small Tungsten Carbide cutters family. The tapered and relieved geometry combined with the head dimensions offer the best advantage to access small areas and to support tip cuts. The full-flush cutting edge is suitable to perform very clean cuts on the hardest wires. The 542TX is equipped with an ESD Ergo-tek slim handle which allows an excellent grip, suitable to environments and to components susceptible to electrostatic discharge. The Tungsten Carbide insert blades are 82HRC hardness.
Head description: Small, Tapered & Relieved
Cutting edges: Full-Flush
Cutting capacity: soft wire mm (- AWG)
Blade material: Tungsten carbide (TX)
Body material: High carbon-chromium low alloy steel (100Cr6)
Body finishing: Sandblasted
Handle material: Ergo-tek Slim - Thermoplastic Elastomer + PP compound
Dimensions:
OAL (A) 120.0 mm – 4.724 inch
Width Height 60.0 mm – 2.362 inch
18.0 mm – 0.709 inch

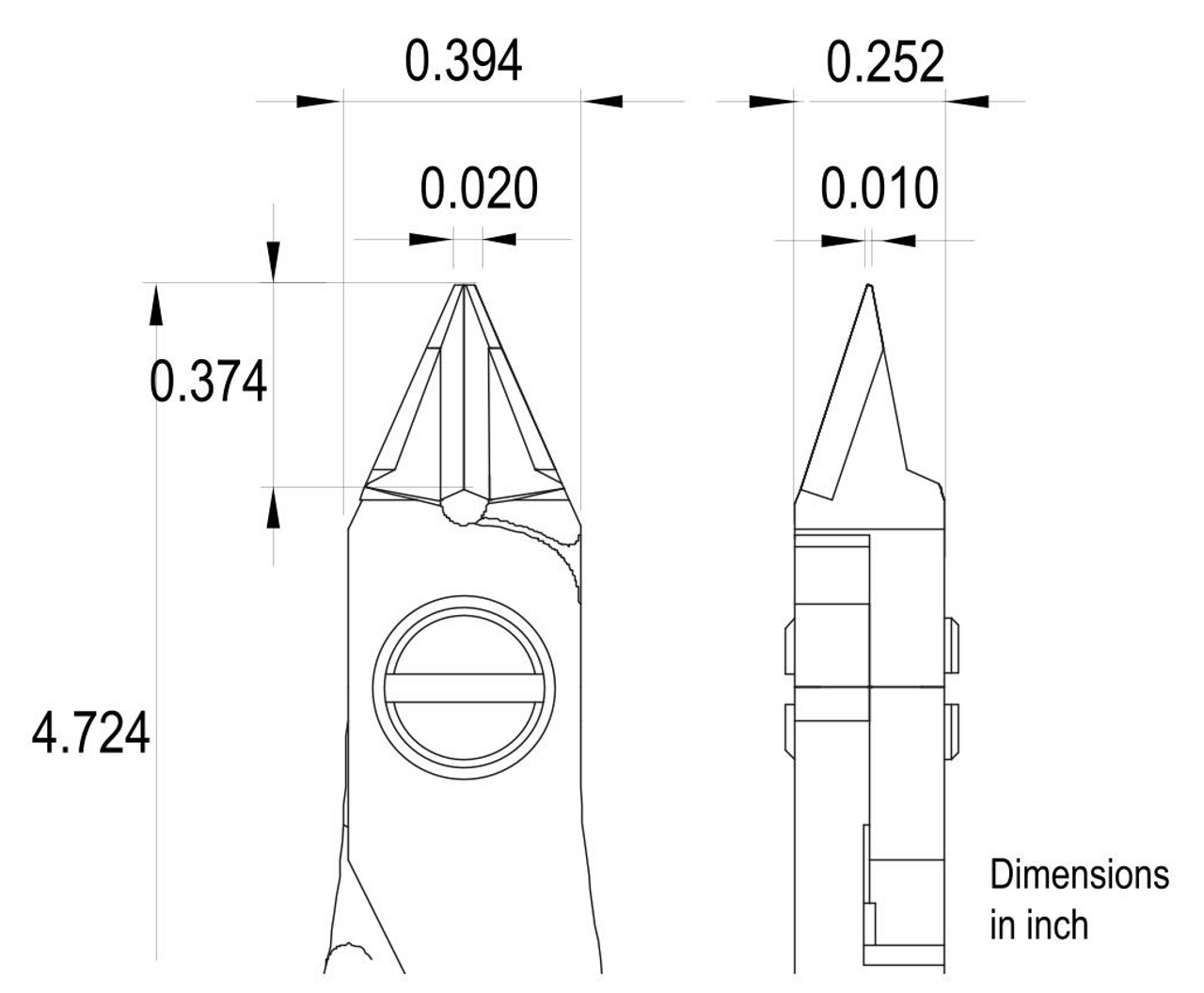

Head Dimensions:
Width (C) 10.0 mm – 0.394 inch
Thickness (D) 6.4 mm – 0.252 inch
B 9.5 mm – 0.374 inch
E 0.5 mm – 0.020 inch
F 0.25 mm – 0.010 inch
Product Description
