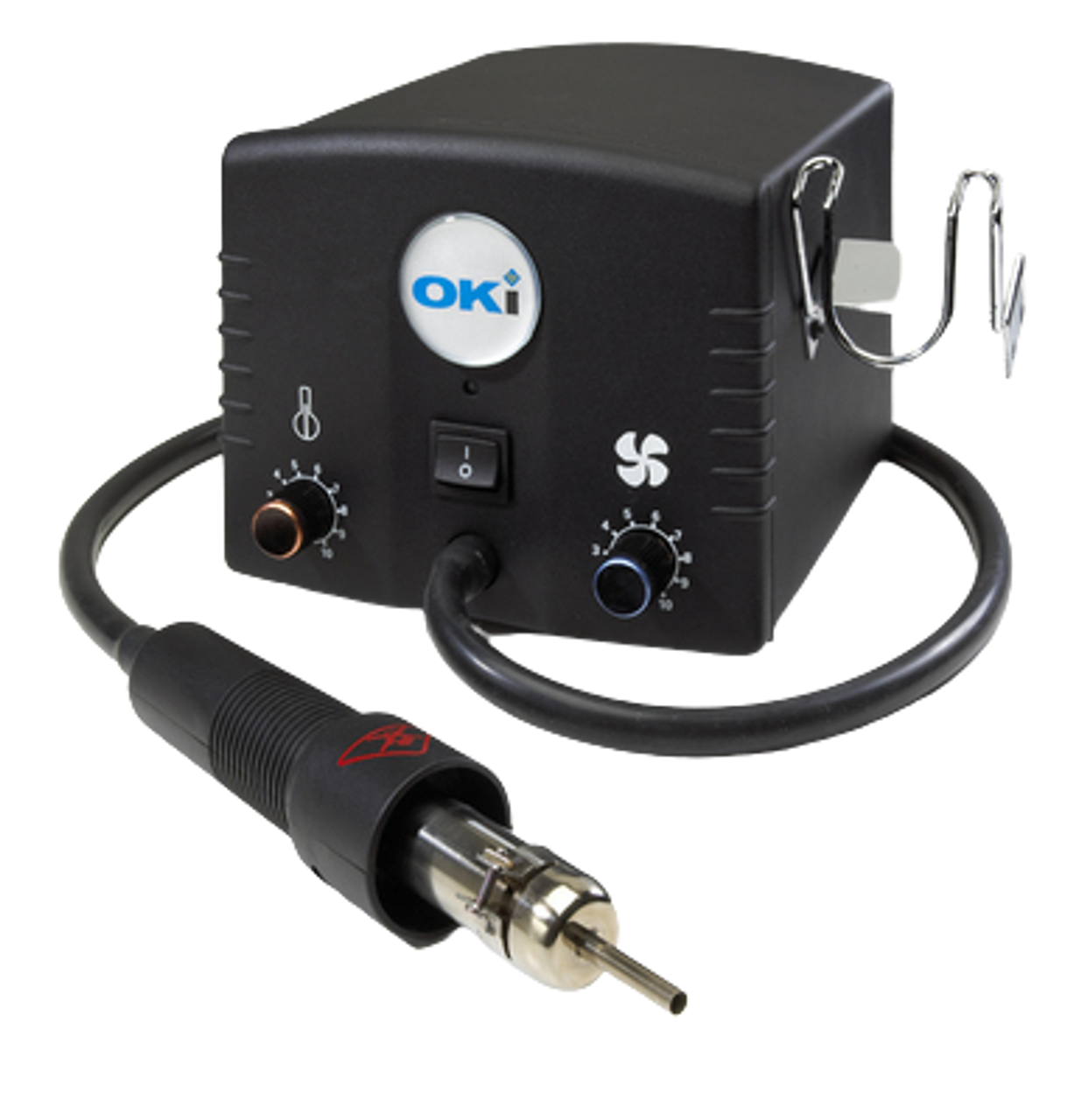

Hand Held Convection Tool, HCT-900-11
Metcal
OKi's HCT900-11 Hand Held Convection Tool is designed for the removal and replacement of electronic components, including lead-free, from 0201 up to 304 pin QRP. It can also be used with solder braid and flux, as well as plastic applications such as applying shrink wrap or the formation of plastic rivets.
- Specifications:
- ESD safe
- AC Input Voltage: 115 VAC
- Dimensions: 6.7' (W) x 8.7' (L) x 5.5' (H)
- Control Temperature: 100°C-500°C (212°F-932°F)
- Noise Level: less than 46 dBA
- Included nozzle H-D50 is 0.2', single jet
- Compact design with analog controls for both airflow and heat
- Surface Resistivity: 105Ohms to 106Ohms
Product Description
Hand Held Convection Tool, HCT-900-11
OKi's HCT900-11 Hand Held Convection Tool is designed for the removal and replacement of electronic components, including lead-free, from 0201 up to 304 pin QRP. It can also be used with solder braid and flux, as well as plastic applications such as applying shrink wrap or the formation of plastic rivets.
- Specifications:
- ESD safe
- AC Input Voltage: 115 VAC
- Dimensions: 6.7' (W) x 8.7' (L) x 5.5' (H)
- Control Temperature: 100°C-500°C (212°F-932°F)
- Noise Level: less than 46 dBA
- Included nozzle H-D50 is 0.2', single jet
- Compact design with analog controls for both airflow and heat
- Surface Resistivity: 105Ohms to 106Ohms
